n8n Workflow AI Agent Chat | AI Conversational Agent

AI agent chat

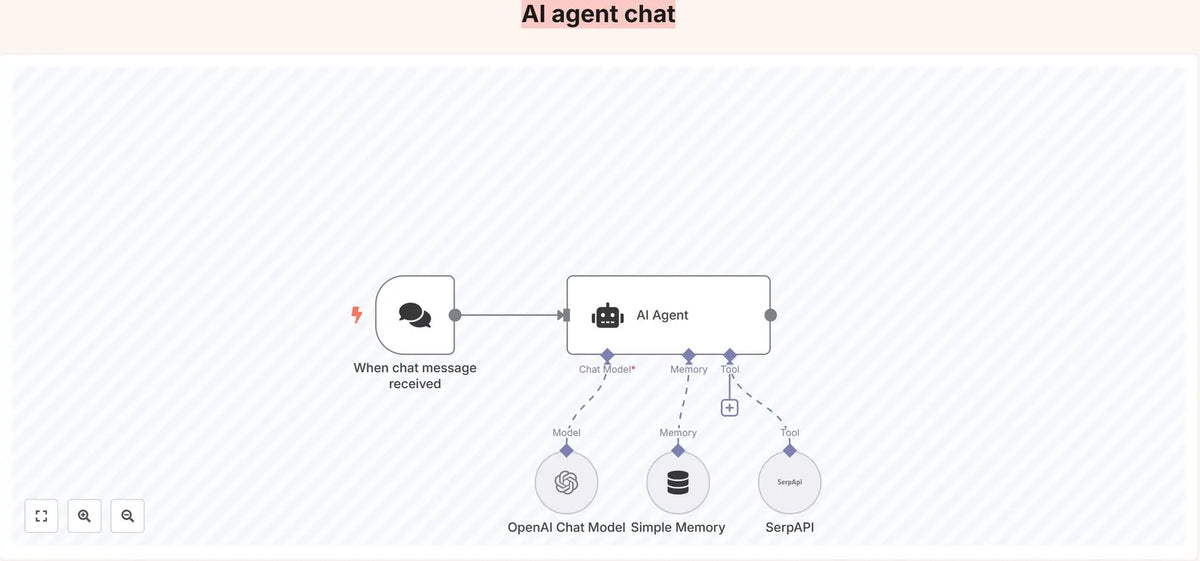

1. Workflow Overview

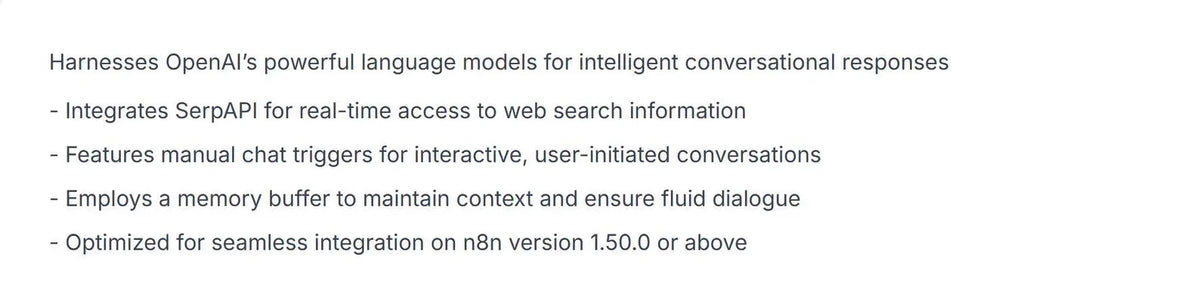

This workflow implements an intelligent AI conversational agent using OpenAI’s language models combined with SerpAPI for real-time information retrieval. It is designed for interactive chat scenarios where users send messages manually (via chat triggers), and the agent responds contextually, maintaining conversation memory.

The workflow is composed of four main logical blocks:

1.1 Input Reception: Captures incoming chat messages via a manual chat trigger node.

1.2 Memory Buffer: Maintains a sliding window of conversation history to provide contextual awareness to the AI agent.

1.3 AI Processing: Uses OpenAI’s GPT-4o-mini language model to generate natural language responses.

1.4 External Knowledge Integration: Calls SerpAPI tool to augment AI responses with up-to-date search data.

1.5 AI Agent Coordination: Orchestrates inputs from the chat trigger, memory, language model, and external tool to generate final replies.

2. Block-by-Block Analysis

2.1 Input Reception

Overview:
Captures chat messages initiated by a user or external system, triggering the workflow to start processing.

Nodes Involved:

When chat message received
Node Details:

When chat message received

Type: @n8n/n8n-nodes-langchain.chatTrigger

Role: Webhook-based trigger node specialized for chat messages. Listens for incoming chat inputs to start the workflow.

Configuration: Default options, no filters or special parameters configured.

Key expressions/variables: None (standard chat trigger behavior).

Inputs: None (trigger node).

Outputs: Connected to the AI Agent node’s main input.

Version: 1.1 (requires n8n 1.50.0+ for compatibility).

Edge Cases:
Incoming message format error or missing data could cause failures.

Webhook connectivity or security misconfiguration may prevent triggering.

2.2 Memory Buffer

Overview:
Maintains a sliding window memory buffer to provide conversational context continuity for the AI agent, simulating short-term memory in conversations.

Nodes Involved:

Simple Memory
Node Details:

Simple Memory Type: @n8n/n8n-nodes-langchain.memoryBufferWindow

Role: Implements a context window memory buffer to store recent chat history.

Configuration: Default parameters (window size and retention policies implicit).

Expressions/variables: None explicitly configured, memory is internally managed.

Inputs: None directly (receives context references from AI agent node).

Outputs: Connected to AI Agent node’s ai_memory input.

Version: 1.3 (requires n8n 1.50.0+).

Edge Cases:
Memory overflow if window size is too small or conversation too long may truncate important context.
Memory desynchronization if underlying data updates asynchronously.
2.3 AI Processing
Overview:
Utilizes OpenAI’s GPT-4o-mini model to generate natural language responses based on input and memory context.

Nodes Involved:

OpenAI Chat Model
Node Details:

OpenAI Chat Model
Type: @n8n/n8n-nodes-langchain.lmChatOpenAi
Role: Calls OpenAI API to generate chat completions using GPT-4o-mini.
Configuration: Model set explicitly to gpt-4o-mini. No additional options or custom parameters set.
Expressions/variables: No dynamic expressions; static model choice.
Inputs: None directly (integrated via AI Agent node).
Outputs: Connected to AI Agent node’s ai_languageModel input.
Credentials: Requires OpenAI API credentials configured (OpenAi account).
Version: 1.2 (requires n8n 1.50.0+).
Edge Cases:
API rate limits or authentication errors.
Model unavailability or deprecation.
Latency or timeout issues from OpenAI service.
2.4 External Knowledge Integration
Overview:
Enables the AI Agent to query SerpAPI for real-time search results to enhance response accuracy and relevance.

Nodes Involved:

SerpAPI
Node Details:

SerpAPI
Type: @n8n/n8n-nodes-langchain.toolSerpApi
Role: Provides external search results via SerpAPI integration.
Configuration: Default parameters, no search query overrides configured here (queries likely passed dynamically by AI Agent).
Inputs: None directly (integrated via AI Agent node).
Outputs: Connected to AI Agent node’s ai_tool input.
Credentials: Requires SerpAPI credentials configured (SerpAPI account).
Version: 1 (requires n8n 1.50.0+).
Edge Cases:
API key invalid or expired.
Quota limits or connectivity issues.
Incorrect search query formatting passed by AI agent.
2.5 AI Agent Coordination
Overview:
Central orchestration node that integrates chat input, memory, language model, and external tool to generate context-aware AI chat responses.

Nodes Involved:

AI Agent
Node Details:

AI Agent
Type: @n8n/n8n-nodes-langchain.agent
Role: Coordinates the conversational AI workflow by taking inputs from the chat trigger, memory buffer, language model, and SerpAPI tool to produce replies.
Configuration: Default options, no custom parameters. It internally manages the logic for when to call external tools or language models.
Expressions/variables: None explicitly configured.
Inputs:
Main input from “When chat message received” (chat messages).
ai_memory input from “Simple Memory”.
ai_languageModel input from “OpenAI Chat Model”.
ai_tool input from “SerpAPI”.
Outputs: Final chat response output back to the chat system (implicit in chat trigger integration).
Version: 1.8 (requires n8n 1.50.0+).
Edge Cases:
Coordination failure if any upstream node fails.
Misrouting of inputs or outputs.
Inability to parse or utilize external tool data correctly.
